This file generated: 13/06/2025

README file for SLSTR S3C filter functions
June 4th, 2025

Draft measured spectral responses of the nine standard channels S1 - S9
in the focal plane of the SLSTR FM02 instrument, to fly on the Sentinel 3C platform.
The responses of the fire channels F1 and F2 are identical to the responses of standard
channels S7 and S8. The responses are derived from measurements taken during a
spectral calibration campaign conducted at the STFC Rutherford Appleton Laboratory (RAL)
in in October and November 2018 (www.stfc.ac.uk).

The results of those measurements are described in the
document S3R-RP-RAL-SL-00011 - SLSTR C FPA Spectral Calibration - 1.0.pdf .

see https://sentinel.esa.int
 Home > Technical Guides > Sentinel-3 SLSTR > Instrument > Spectral Response Function Data

SRFs are truncated (microns):
   SLSTR_S3C_S1_20190729.nc  0.515   0.595  vis
   SLSTR_S3C_S2_20190729.nc  0.619   0.699  vis
   SLSTR_S3C_S3_20190729.nc  0.825   0.905  vis
   SLSTR_S3C_S4_20190729.nc  1.345   1.405  vis
   SLSTR_S3C_S5_20190729.nc  1.490   1.730  vis
   SLSTR_S3C_S6_20190729.nc  2.150   2.350  vis
   SLSTR_S3C_S7_20190729.nc  2.980   4.500   ir
   SLSTR_S3C_S8_20190729.nc  9.050   12.65   ir
   SLSTR_S3C_S9_20190729.nc  10.00   14.00   ir

Nominal central wavenumber (microns and wavenumber):
    0.5550  18018.0180
    0.6590  15174.5068
    0.8650  11560.6936
    1.3750   7272.7272
    1.6090   6215.0403
    2.2500   4444.4444
    3.7400   2673.7967
   10.8500    921.6589
   12.0000    833.3333

Download all SRFs: rtcoef_sentinel3_3_slstr_srf.tar.gz

Channel 01 Central wavenumber/wavelength: 18028.658 cm-1 / 0.555 microns Comment: 1, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch01.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch01.png

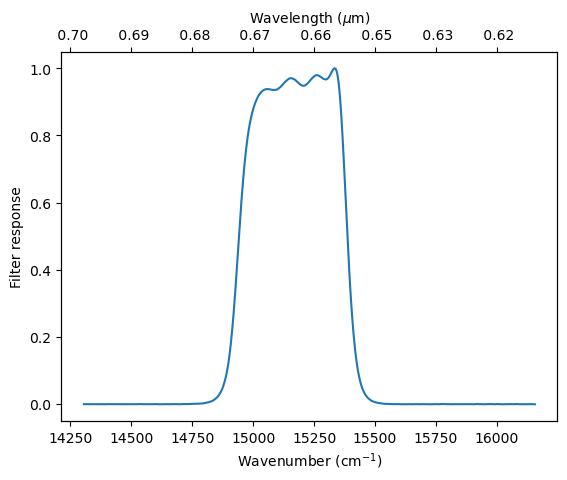

Channel 02 Central wavenumber/wavelength: 15167.140 cm-1 / 0.659 microns Comment: 2, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch02.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch02.png

Channel 03 Central wavenumber/wavelength: 11563.890 cm-1 / 0.865 microns Comment: 3, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch03.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch03.png

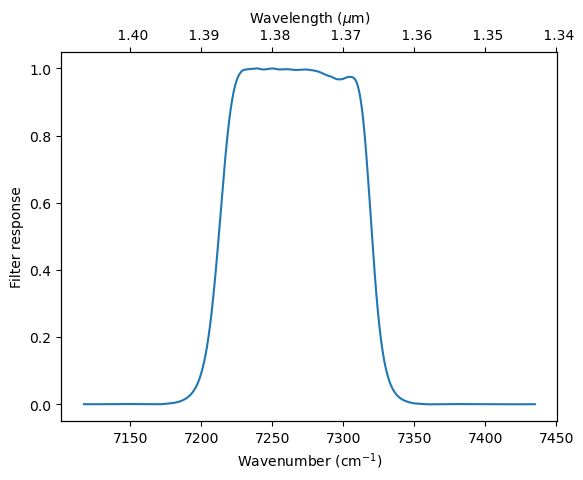

Channel 04 Central wavenumber/wavelength: 7266.014 cm-1 / 1.376 microns Comment: 4, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch04.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch04.png

Channel 05 Central wavenumber/wavelength: 6212.304 cm-1 / 1.610 microns Comment: 5, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch05.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch05.png

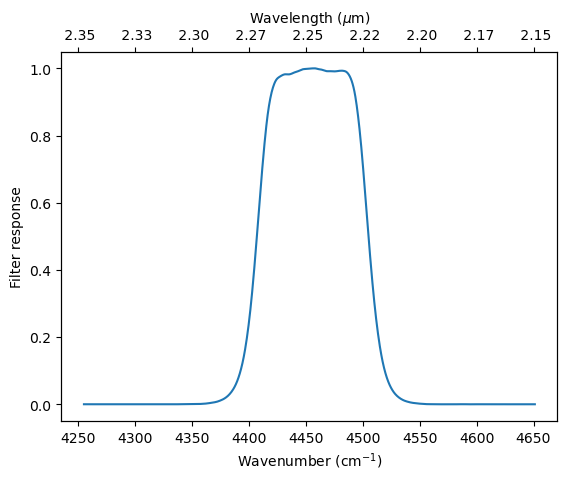

Channel 06 Central wavenumber/wavelength: 4456.194 cm-1 / 2.244 microns Comment: 6, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch06.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch06.png

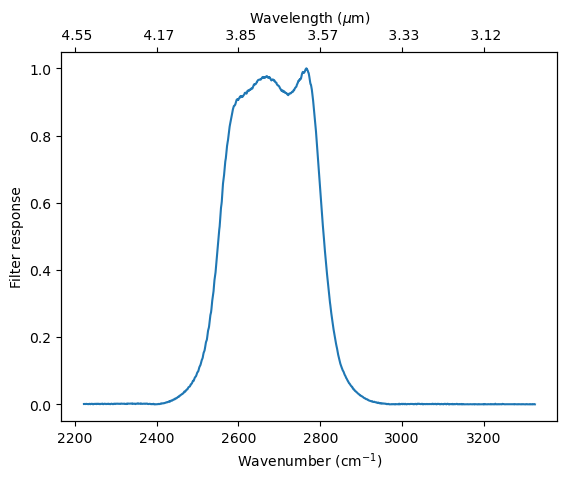

Channel 07 Central wavenumber/wavelength: 2680.710 cm-1 / 3.730 microns Comment: 1, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch07.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch07.png

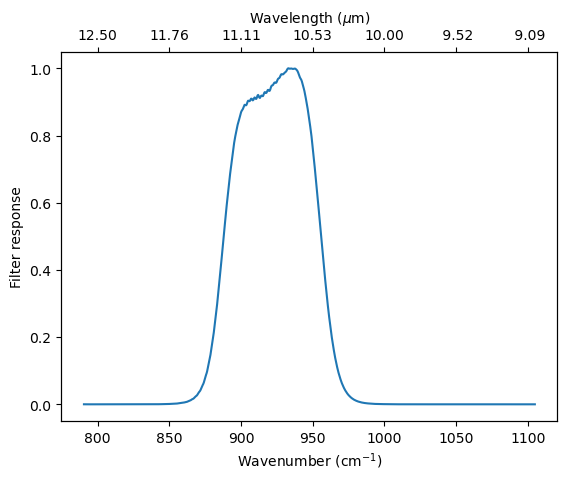

Channel 08 Central wavenumber/wavelength: 922.427 cm-1 / 10.841 microns Comment: 2, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch08.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch08.png

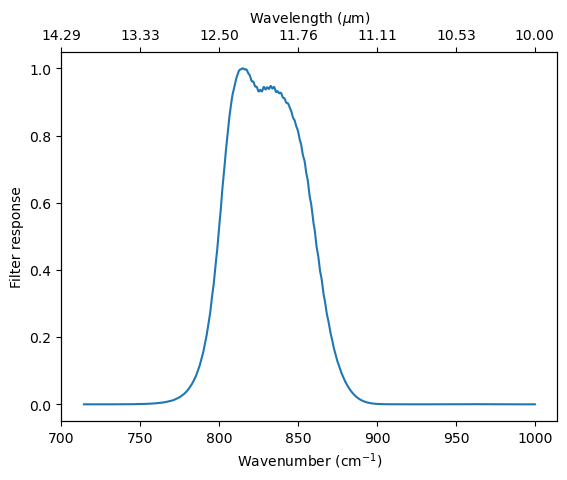

Channel 09 Central wavenumber/wavelength: 830.070 cm-1 / 12.047 microns Comment: 3, Resampled Sentinel-3C SLSTR unpolarised FPA response at 87 K SRF data: rtcoef_sentinel3_3_slstr_srf_ch09.txt SRF plot: rtcoef_sentinel3_3_slstr_srf_ch09.png
