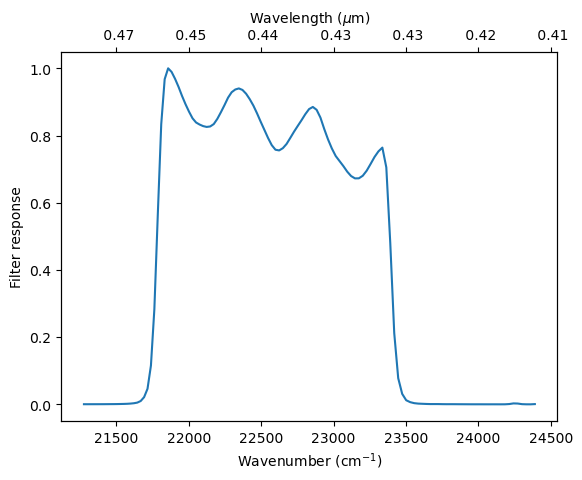

Central wavenumber/wavelength: 22551.661 cm-1 / 0.443 microns
Comment: 1, channel 0.443 SRF channel 0.443 SRF
SRF data: rtcoef_metopsg_1_metimage_srf_ch01.txt
SRF plot: rtcoef_metopsg_1_metimage_srf_ch01.png
This file generated: 22/05/2025
README file for METimage SRFs for METimage for MetOP-SG A1
Date: mai 2025
Author: Sonia Pere
file 20250320_metimage_gpp.nc
provided by Loredana Spezzi from EUMETSAT
Pre-processing of SRFs:
Wavelenghs in meters converted to wavenumbers (cm-1)
SRFs values normalized with between 0. and 1.
channel_vis
0.443
0.555
0.668
0.752
0.763
0.865
0.914
1.240
1.375
1.630
2.250
append_coef: Following is taken from rtcoef_metopsg_1_metimage-ir.H5:
IR channel:
3.740 micron
3.959 micron
4.050 micron
6.725 micron
7.325 micron
8.540 micron
10.690 micron
12.020 micron
13.345 micron
Download all SRFs: rtcoef_metopsg_1_metimage_srf.tar.gz
|
Channel 01 Central wavenumber/wavelength: 22551.661 cm-1 / 0.443 microns Comment: 1, channel 0.443 SRF channel 0.443 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch01.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch01.png |
|
|

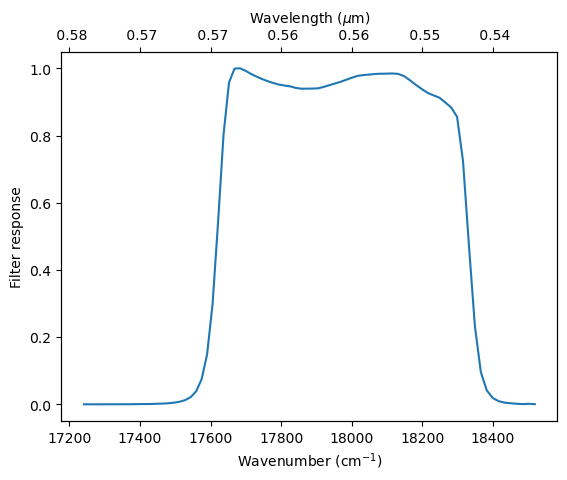

Channel 02 Central wavenumber/wavelength: 17970.843 cm-1 / 0.556 microns Comment: 2, channel 0.555 SRF channel 0.555 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch02.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch02.png |
|
|

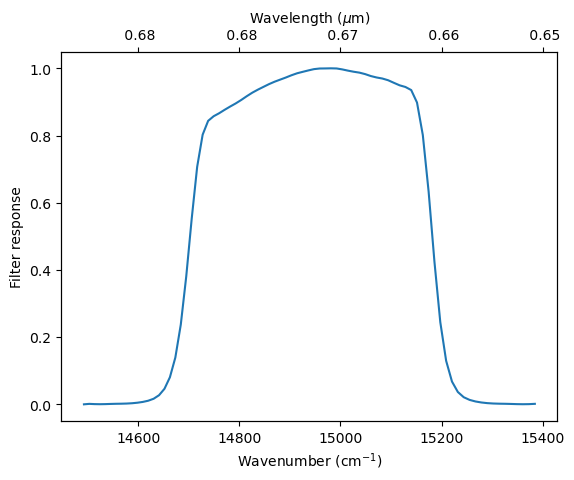

Channel 03 Central wavenumber/wavelength: 14944.998 cm-1 / 0.669 microns Comment: 3, channel 0.668 SRF channel 0.668 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch03.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch03.png |
|
|

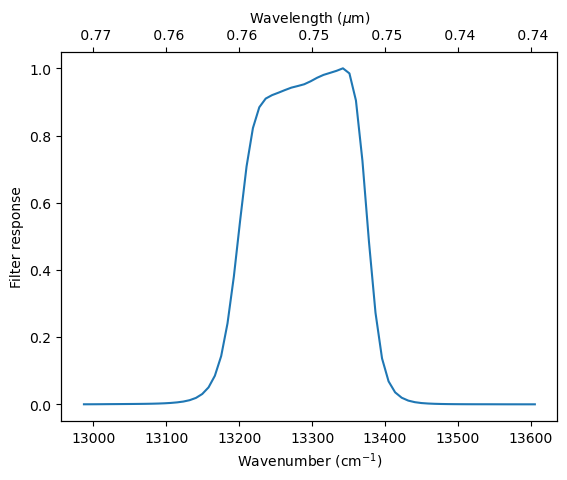

Channel 04 Central wavenumber/wavelength: 13288.188 cm-1 / 0.753 microns Comment: 4, channel 0.752 SRF channel 0.752 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch04.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch04.png |
|
|

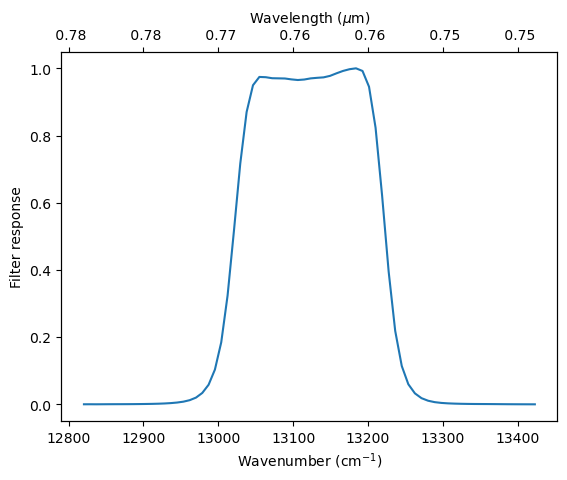

Channel 05 Central wavenumber/wavelength: 13121.918 cm-1 / 0.762 microns Comment: 5, channel 0.763 SRF channel 0.763 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch05.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch05.png |
|
|

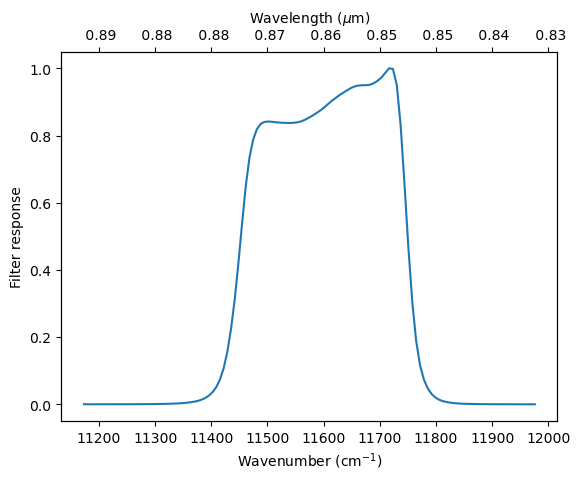

Channel 06 Central wavenumber/wavelength: 11604.234 cm-1 / 0.862 microns Comment: 6, channel 0.865 SRF channel 0.865 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch06.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch06.png |
|
|
Channel 07 Central wavenumber/wavelength: 10932.553 cm-1 / 0.915 microns Comment: 7, channel 0.914 SRF channel 0.914 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch07.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch07.png |
|
|

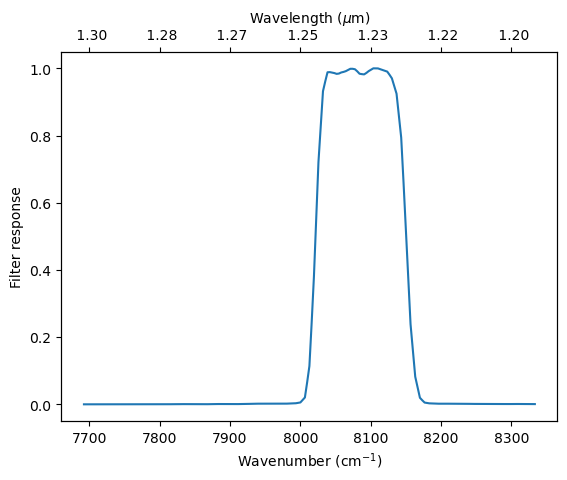

Channel 08 Central wavenumber/wavelength: 8086.091 cm-1 / 1.237 microns Comment: 8, channel 1.24 SRF channel 1.24 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch08.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch08.png |
|
|

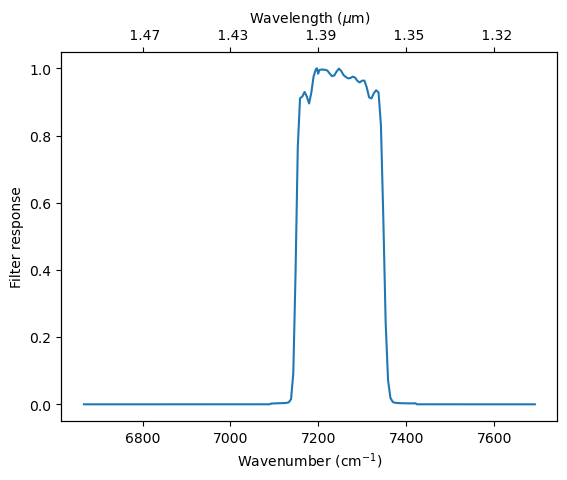

Channel 09 Central wavenumber/wavelength: 7249.008 cm-1 / 1.379 microns Comment: 9, channel 1.375 SRF channel 1.375 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch09.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch09.png |
|
|

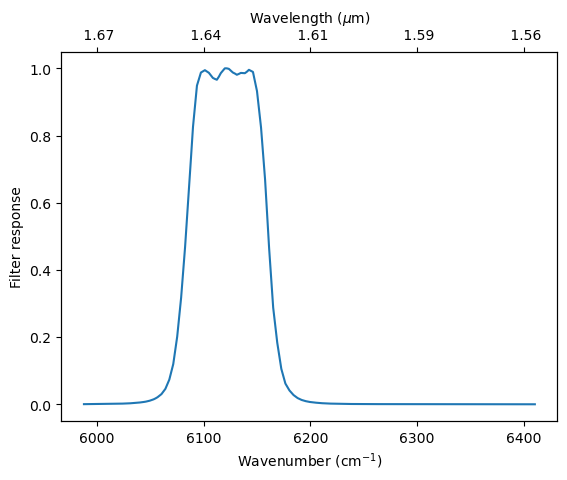

Channel 10 Central wavenumber/wavelength: 6122.009 cm-1 / 1.633 microns Comment: 10, channel 1.63 SRF channel 1.63 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch10.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch10.png |
|
|

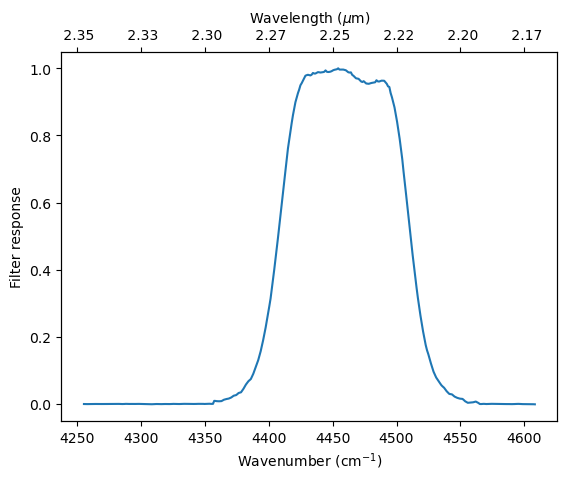

Channel 11 Central wavenumber/wavelength: 4458.910 cm-1 / 2.243 microns Comment: 11, channel 2.25 SRF channel 2.25 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch11.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch11.png |
|
|

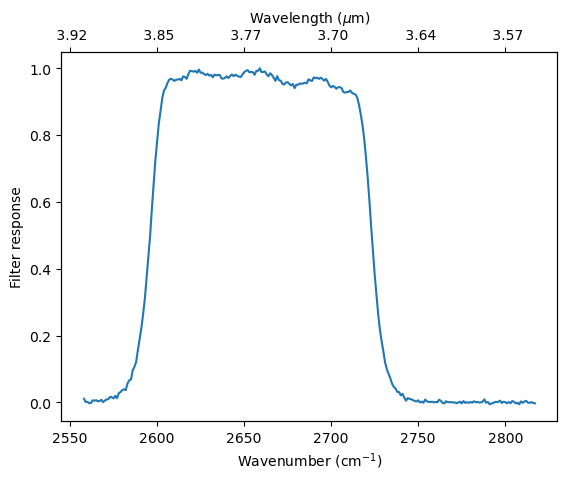

Channel 12 Central wavenumber/wavelength: 2659.148 cm-1 / 3.761 microns Comment: 12, channel 3.74 SRF channel 3.74 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch12.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch12.png |
|
|

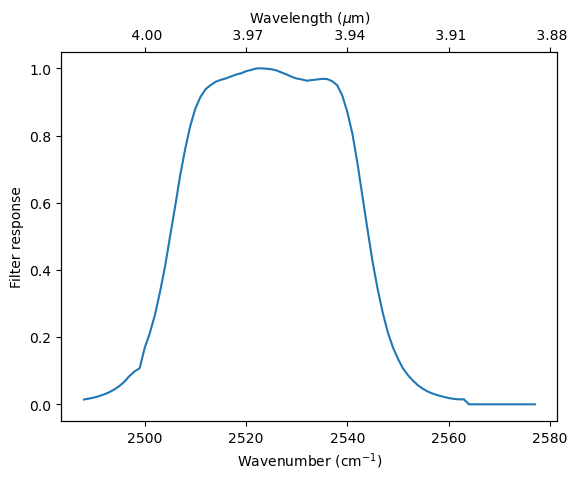

Channel 13 Central wavenumber/wavelength: 2524.681 cm-1 / 3.961 microns Comment: 13, channel 3.959 SRF channel 3.959 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch13.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch13.png |
|
|

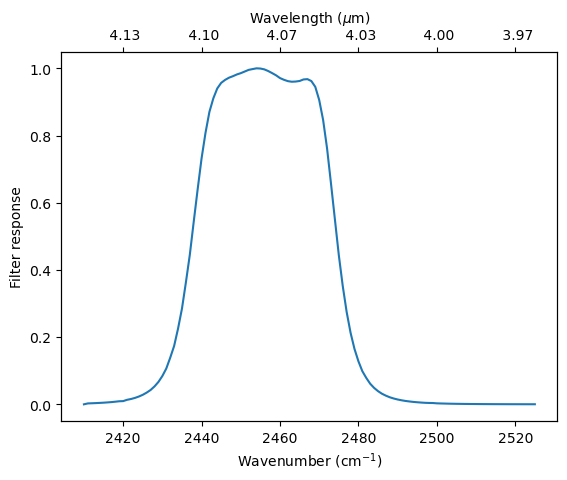

Channel 14 Central wavenumber/wavelength: 2456.016 cm-1 / 4.072 microns Comment: 14, channel 4.05 SRF channel 4.05 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch14.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch14.png |
|
|
Channel 15 Central wavenumber/wavelength: 1487.874 cm-1 / 6.721 microns Comment: 15, channel 6.725 SRF channel 6.725 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch15.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch15.png |
|
|

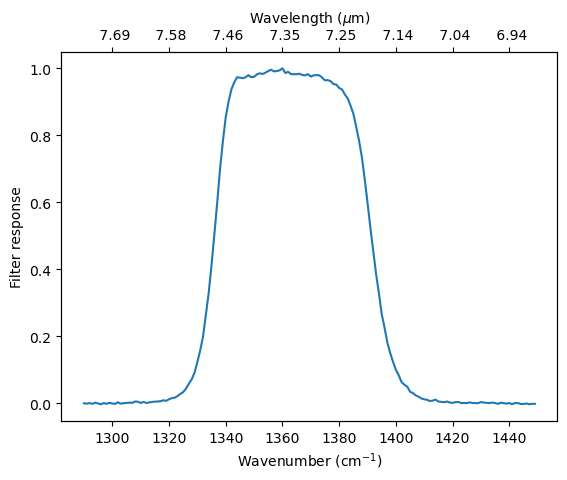

Channel 16 Central wavenumber/wavelength: 1363.739 cm-1 / 7.333 microns Comment: 16, channel 7.325 SRF channel 7.325 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch16.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch16.png |
|
|

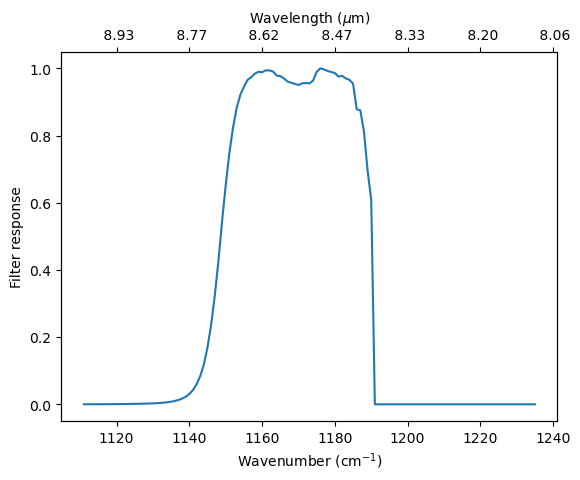

Channel 17 Central wavenumber/wavelength: 1168.647 cm-1 / 8.557 microns Comment: 17, channel 8.54 SRF channel 8.54 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch17.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch17.png |
|
|

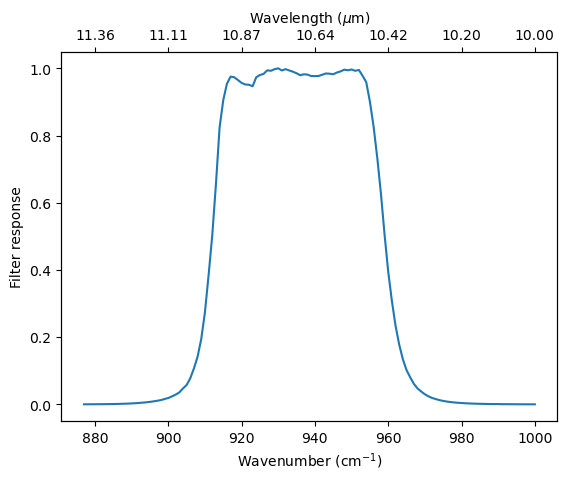

Channel 18 Central wavenumber/wavelength: 935.604 cm-1 / 10.688 microns Comment: 18, channel 10.69 SRF channel 10.69 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch18.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch18.png |
|
|
Channel 19 Central wavenumber/wavelength: 832.171 cm-1 / 12.017 microns Comment: 19, channel 12.02 SRF channel 12.02 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch19.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch19.png |
|
|

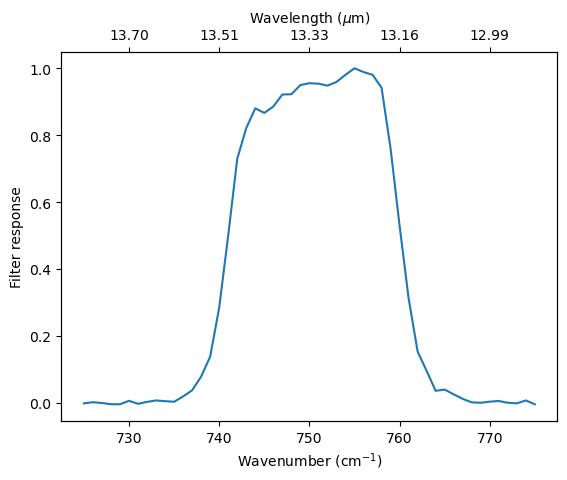

Channel 20 Central wavenumber/wavelength: 750.775 cm-1 / 13.320 microns Comment: 20, channel 13.345 SRF channel 13.345 SRF SRF data: rtcoef_metopsg_1_metimage_srf_ch20.txt SRF plot: rtcoef_metopsg_1_metimage_srf_ch20.png |
|
