This file generated: 11/03/2025
LSTM
Land Surface Temperature Monitoring
To monitor evapotranspiration through the
variability of Land Surface Temperature
and (complementary) to map soil composition and other variables.
Sunsynchronous orbit
Altitude  640 km
SRF from LSTM_ISRF_all_bands.xlsx
1,   channel VNIR0 0.490 micron
2,   channel VNIR1 0.665 micron
3,   channel VNIR2 0.865 micron
4,   channel VNIR3a  0.945 micron
5,   channel VNIR3b 0.945 micron
6,   channel SWIR1 1.380 micron
7,   channel SWIR2 1.610 micron
append_coef: Following is taken from rtcoef_lstm_1_lstm-ir.H5:
    8,   channel TIR1 8.6 micron
    9,   channel TIR2  8.9  micron
    10,   channel TIR3 9.2 micron
    11,   channel TIR4 10.9 micron
    12,   channel TIR5 12 micron
Download all SRFs: rtcoef_lstm_1_lstm_srf.tar.gz

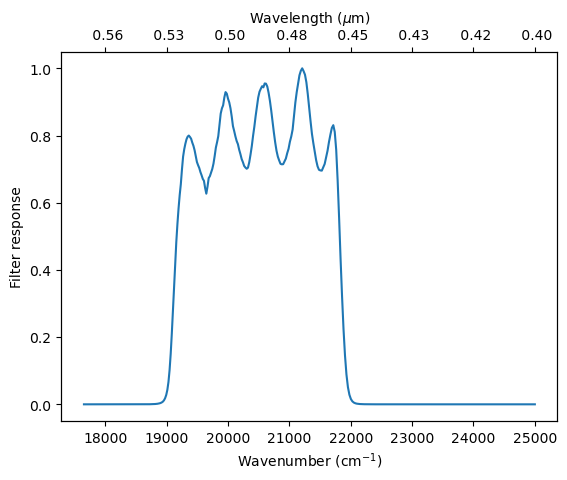

Channel 01 Central wavenumber/wavelength: 20510.633 cm-1 / 0.488 microns Comment: 1, channel VNIR0 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch01.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch01.png |
![]() |

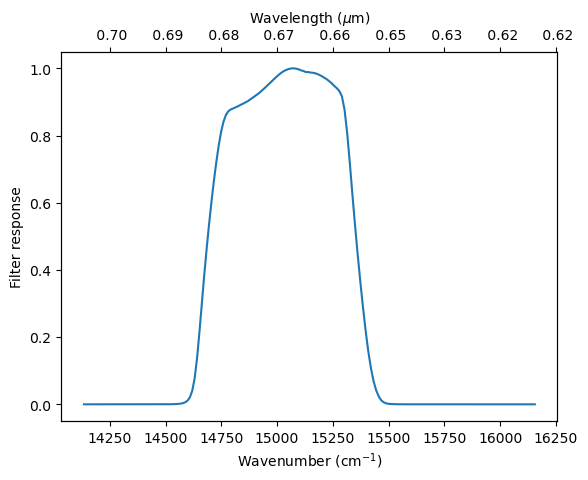

Channel 02 Central wavenumber/wavelength: 15029.547 cm-1 / 0.665 microns Comment: 2, channel VNIR1 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch02.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch02.png |
![]() |

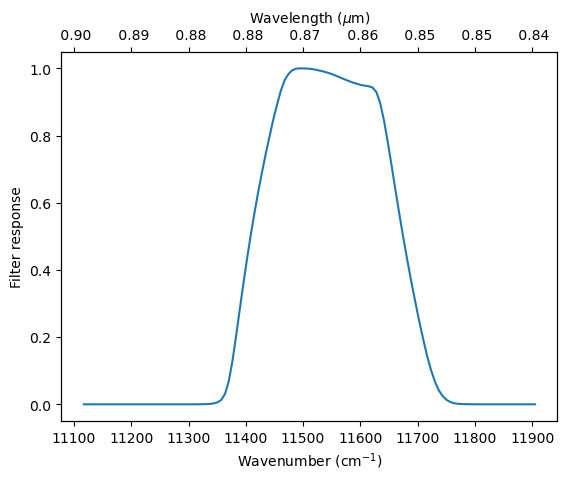

Channel 03 Central wavenumber/wavelength: 11544.287 cm-1 / 0.866 microns Comment: 3, channel VNIR2 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch03.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch03.png |
![]() |

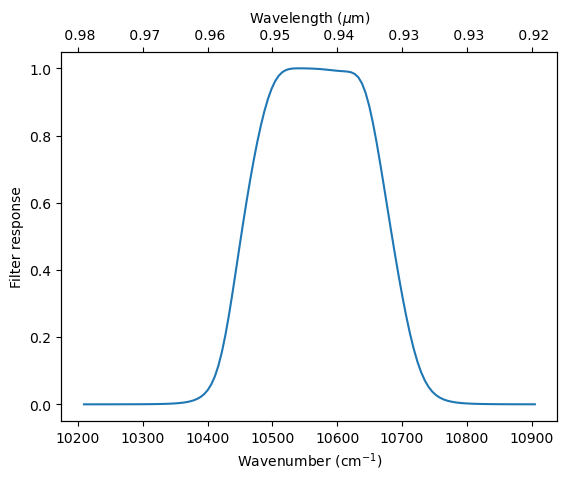

Channel 04 Central wavenumber/wavelength: 10569.680 cm-1 / 0.946 microns Comment: 4, channel VNIR3a SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch04.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch04.png |
![]() |

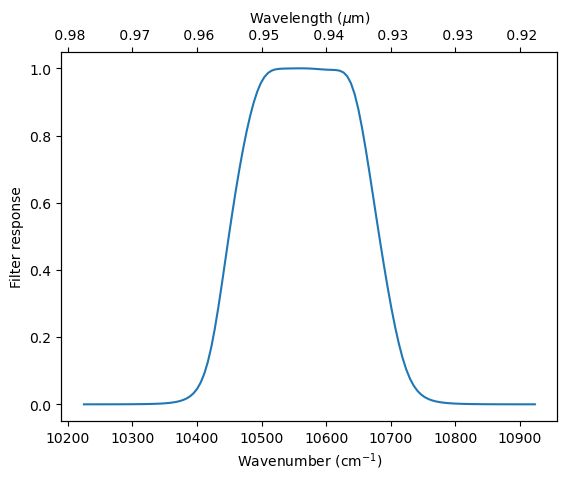

Channel 05 Central wavenumber/wavelength: 10567.104 cm-1 / 0.946 microns Comment: 5, channel VNIR3b SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch05.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch05.png |
![]() |

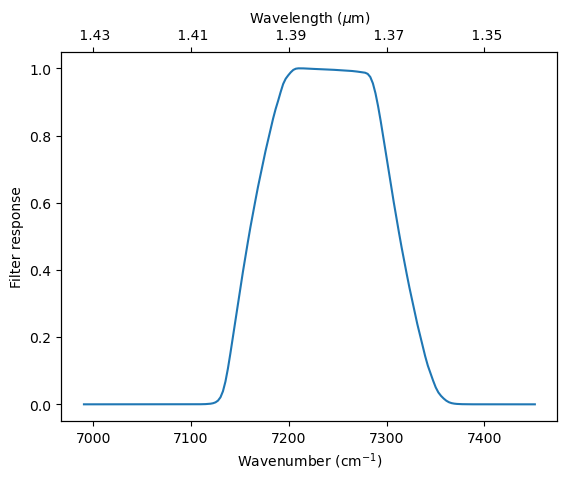

Channel 06 Central wavenumber/wavelength: 7238.370 cm-1 / 1.382 microns Comment: 6, channel SWIR1 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch06.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch06.png |
![]() |

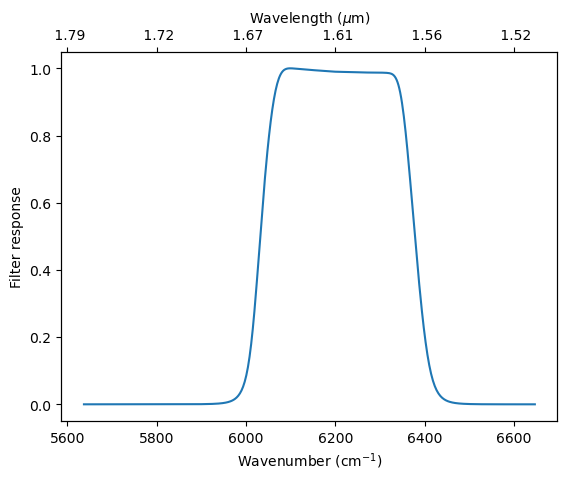

Channel 07 Central wavenumber/wavelength: 6205.640 cm-1 / 1.611 microns Comment: 7, channel SWIR2 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch07.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch07.png |
![]() |
Channel 08 Central wavenumber/wavelength: 1163.088 cm-1 / 8.598 microns Comment: 8, channel TIR1 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch08.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch08.png |
![]() |

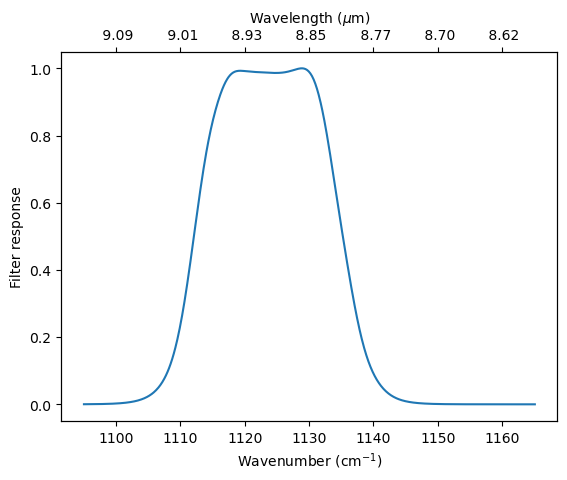

Channel 09 Central wavenumber/wavelength: 1123.778 cm-1 / 8.899 microns Comment: 9, channel TIR2 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch09.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch09.png |
![]() |

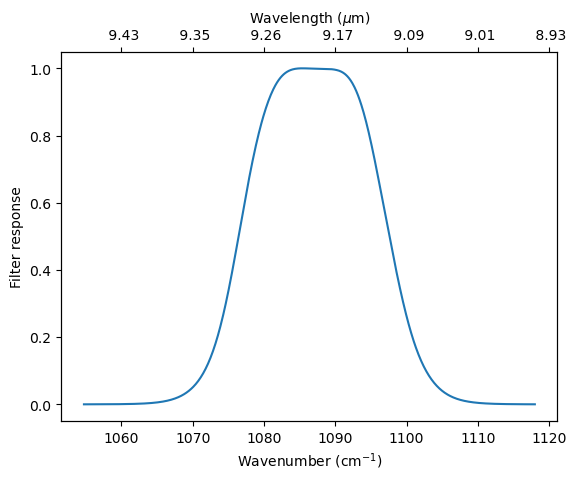

Channel 10 Central wavenumber/wavelength: 1087.089 cm-1 / 9.199 microns Comment: 10, channel TIR3 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch10.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch10.png |
![]() |

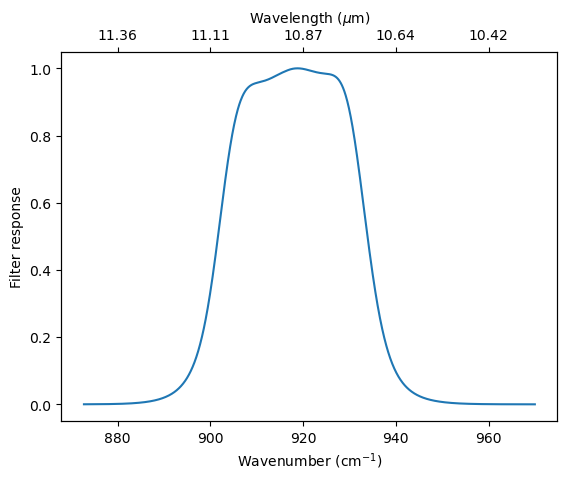

Channel 11 Central wavenumber/wavelength: 917.873 cm-1 / 10.895 microns Comment: 11, channel TIR4 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch11.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch11.png |
![]() |

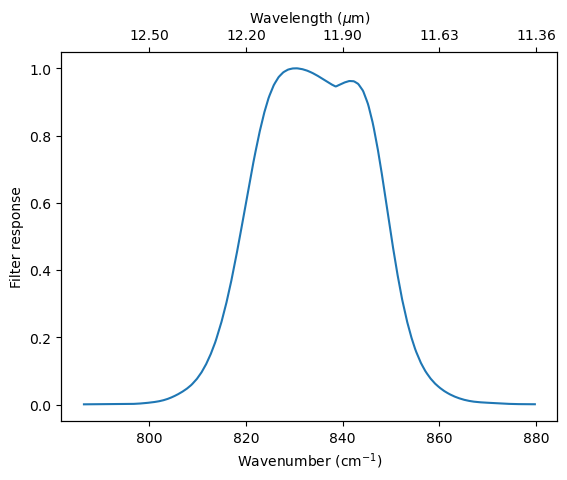

Channel 12 Central wavenumber/wavelength: 834.318 cm-1 / 11.986 microns Comment: 12, channel TIR5 SRF from LSTM_ISRF_all_bands.xlsx SRF data: rtcoef_lstm_1_lstm_srf_ch12.txt SRF plot: rtcoef_lstm_1_lstm_srf_ch12.png |
![]() |
