This file generated: 05/02/2025
Data obtained from MITLL for the MIT LL TROPICS SV2-SV7 radiometers
Date received: 28/01/2022
This material is based upon work supported by the National Aeronautics and Space Administration
under Air Force Contract No. FA8702-15-D-0001.
Text file contains the frequency (GHz) and the passband weights (normalized to one within six-digit precision).
Download all SRFs: rtcoef_tropics_7_tropics_srf.tar.gz

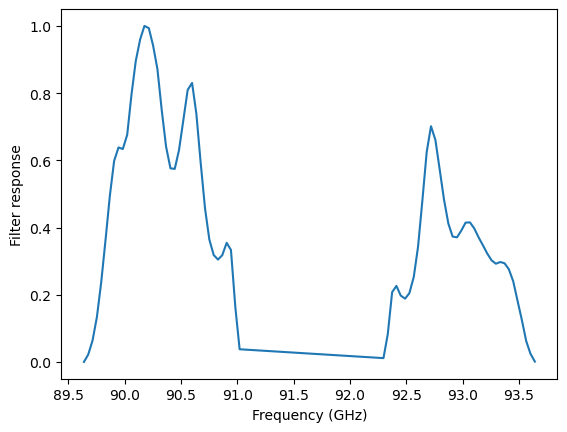

Channel 01 Central wavenumber/frequency: 3.044 cm-1 / 91.263 GHz Comment: 1 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch01.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch01.png |
![]() |
Channel 02 Central wavenumber/frequency: 3.817 cm-1 / 114.443 GHz Comment: 2 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch02.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch02.png |
![]() |

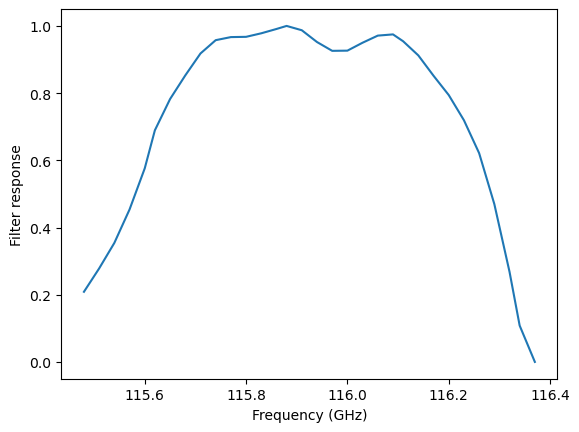

Channel 03 Central wavenumber/frequency: 3.867 cm-1 / 115.922 GHz Comment: 3 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch03.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch03.png |
![]() |

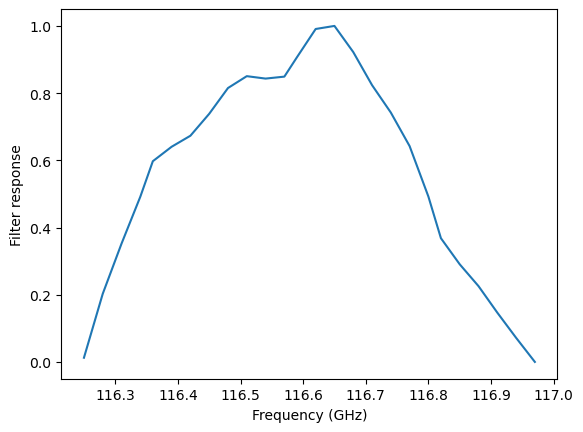

Channel 04 Central wavenumber/frequency: 3.889 cm-1 / 116.585 GHz Comment: 4 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch04.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch04.png |
![]() |

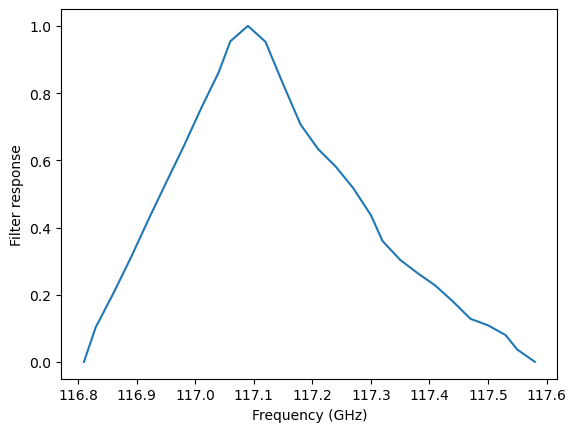

Channel 05 Central wavenumber/frequency: 3.907 cm-1 / 117.133 GHz Comment: 5 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch05.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch05.png |
![]() |

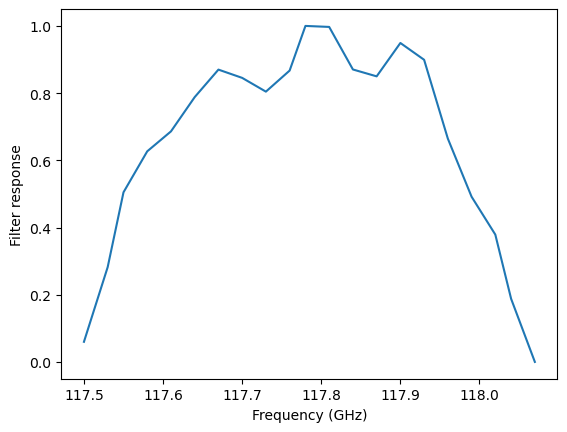

Channel 06 Central wavenumber/frequency: 3.929 cm-1 / 117.781 GHz Comment: 6 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch06.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch06.png |
![]() |

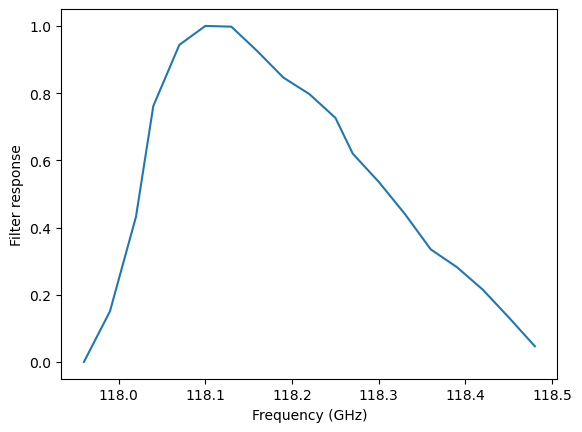

Channel 07 Central wavenumber/frequency: 3.942 cm-1 / 118.185 GHz Comment: 7 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch07.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch07.png |
![]() |

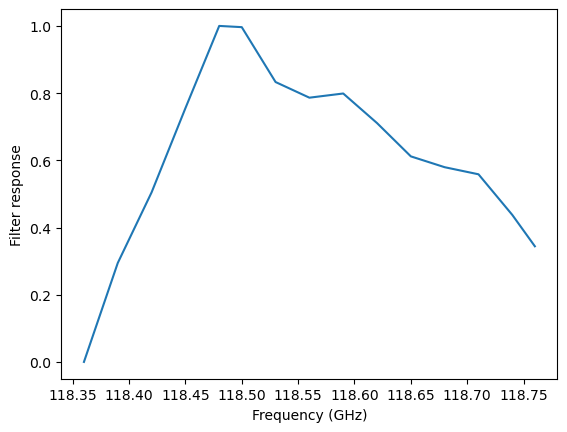

Channel 08 Central wavenumber/frequency: 3.955 cm-1 / 118.562 GHz Comment: 8 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch08.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch08.png |
![]() |

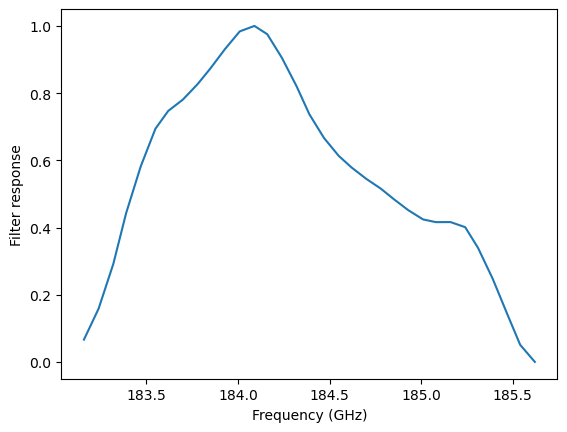

Channel 09 Central wavenumber/frequency: 6.146 cm-1 / 184.245 GHz Comment: 9 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch09.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch09.png |
![]() |

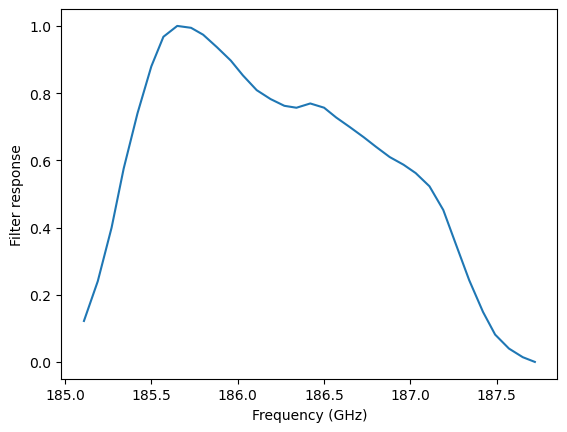

Channel 10 Central wavenumber/frequency: 6.211 cm-1 / 186.200 GHz Comment: 10 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch10.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch10.png |
![]() |
Channel 11 Central wavenumber/frequency: 6.334 cm-1 / 189.884 GHz Comment: 11 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch11.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch11.png |
![]() |

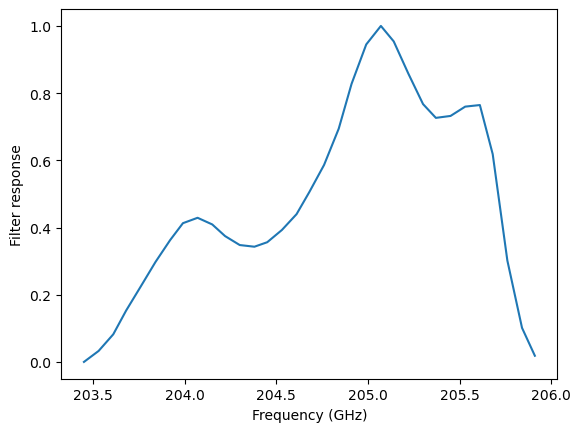

Channel 12 Central wavenumber/frequency: 6.835 cm-1 / 204.905 GHz Comment: 12 , channel number SRF data: rtcoef_tropics_7_tropics_srf_ch12.txt SRF plot: rtcoef_tropics_7_tropics_srf_ch12.png |
![]() |
