This file generated: 20/02/2026

Data obtained from The Tomorrow Companies inc.
for the Tomorrow.io Microwave Sounder (TMS) Instrument onboard platform Tomorrow-S08
Date received: 13/01/2026

Download all SRFs: rtcoef_tms_8_tms_srf.tar.gz

Channel 01 Central wavenumber/frequency: 3.054 cm-1 / 91.566 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.7 deg Comment: 1 , channel number SRF data: rtcoef_tms_8_tms_srf_ch01.txt SRF plot: rtcoef_tms_8_tms_srf_ch01.png

Channel 02 Central wavenumber/frequency: 3.898 cm-1 / 116.855 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.2 deg Comment: 2 , channel number SRF data: rtcoef_tms_8_tms_srf_ch02.txt SRF plot: rtcoef_tms_8_tms_srf_ch02.png

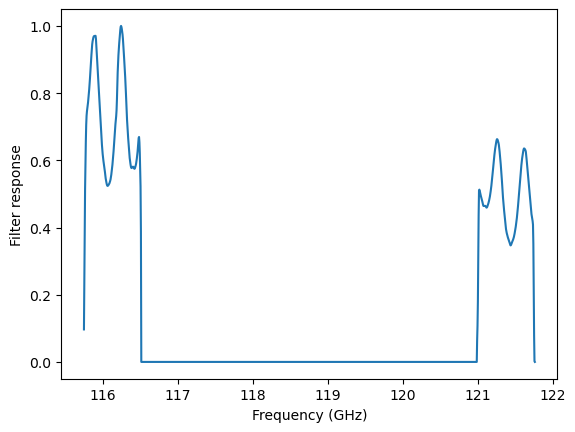

Channel 03 Central wavenumber/frequency: 3.944 cm-1 / 118.244 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.2 deg Comment: 3 , channel number SRF data: rtcoef_tms_8_tms_srf_ch03.txt SRF plot: rtcoef_tms_8_tms_srf_ch03.png

Channel 04 Central wavenumber/frequency: 3.944 cm-1 / 118.240 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.2 deg Comment: 4 , channel number SRF data: rtcoef_tms_8_tms_srf_ch04.txt SRF plot: rtcoef_tms_8_tms_srf_ch04.png

Channel 05 Central wavenumber/frequency: 3.950 cm-1 / 118.425 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.2 deg Comment: 5 , channel number SRF data: rtcoef_tms_8_tms_srf_ch05.txt SRF plot: rtcoef_tms_8_tms_srf_ch05.png

Channel 06 Central wavenumber/frequency: 3.958 cm-1 / 118.669 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.2 deg Comment: 6 , channel number SRF data: rtcoef_tms_8_tms_srf_ch06.txt SRF plot: rtcoef_tms_8_tms_srf_ch06.png

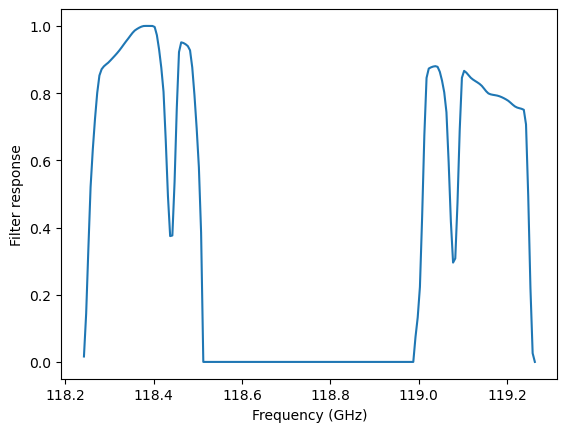

Channel 07 Central wavenumber/frequency: 3.960 cm-1 / 118.725 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.2 deg Comment: 7 , channel number SRF data: rtcoef_tms_8_tms_srf_ch07.txt SRF plot: rtcoef_tms_8_tms_srf_ch07.png

Channel 08 Central wavenumber/frequency: 3.961 cm-1 / 118.753 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.2 deg Comment: 8 , channel number SRF data: rtcoef_tms_8_tms_srf_ch08.txt SRF plot: rtcoef_tms_8_tms_srf_ch08.png

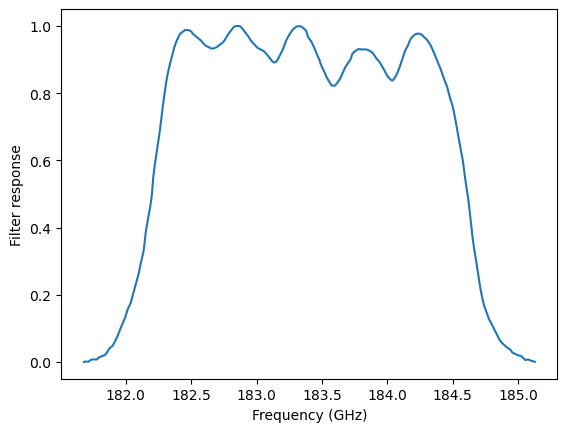

Channel 09 Central wavenumber/frequency: 6.117 cm-1 / 183.384 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.8 deg Comment: 9 , channel number SRF data: rtcoef_tms_8_tms_srf_ch09.txt SRF plot: rtcoef_tms_8_tms_srf_ch09.png

Channel 10 Central wavenumber/frequency: 6.183 cm-1 / 185.375 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.8 deg Comment: 10 , channel number SRF data: rtcoef_tms_8_tms_srf_ch10.txt SRF plot: rtcoef_tms_8_tms_srf_ch10.png

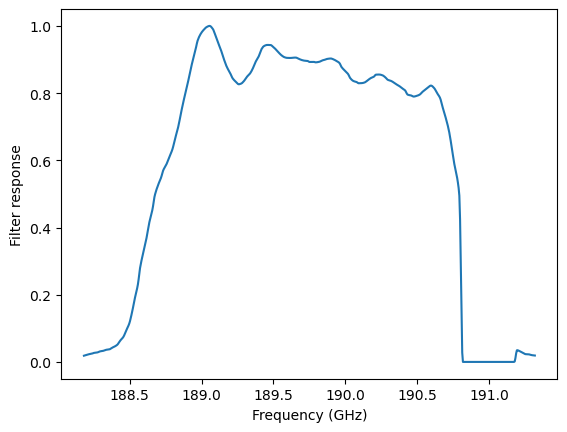

Channel 11 Central wavenumber/frequency: 6.327 cm-1 / 189.691 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.8 deg Comment: 11 , channel number SRF data: rtcoef_tms_8_tms_srf_ch11.txt SRF plot: rtcoef_tms_8_tms_srf_ch11.png

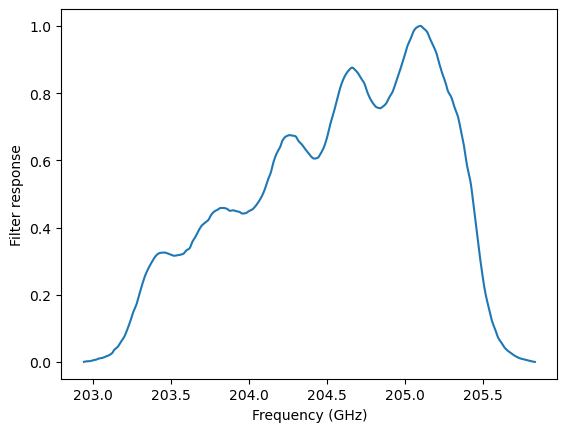

Channel 12 Central wavenumber/frequency: 6.824 cm-1 / 204.565 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.8 deg Comment: 12 , channel number SRF data: rtcoef_tms_8_tms_srf_ch12.txt SRF plot: rtcoef_tms_8_tms_srf_ch12.png
