This file generated: 17/09/2025

Data obtained from The Tomorrow Companies inc.
for the Tomorrow.io Microwave Sounder (TMS) Instrument onboard platform Tomorrow-S07
Date received: 16/09/2025

Download all SRFs: rtcoef_tms_7_tms_srf.tar.gz

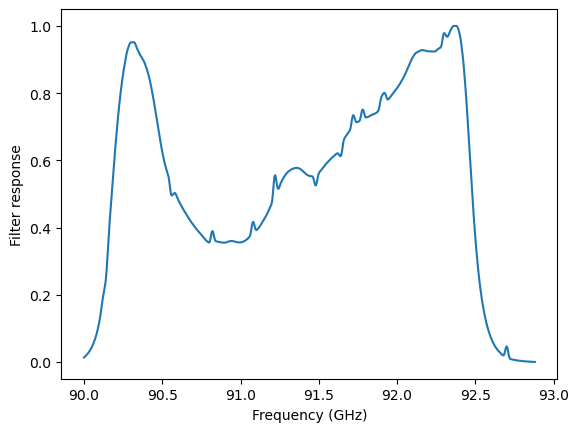

Channel 01 Central wavenumber/frequency: 3.050 cm-1 / 91.426 GHz Polarisation: Fixed V/H mix (ID=7), phi=15.0 deg Comment: 1 , channel number SRF data: rtcoef_tms_7_tms_srf_ch01.txt SRF plot: rtcoef_tms_7_tms_srf_ch01.png

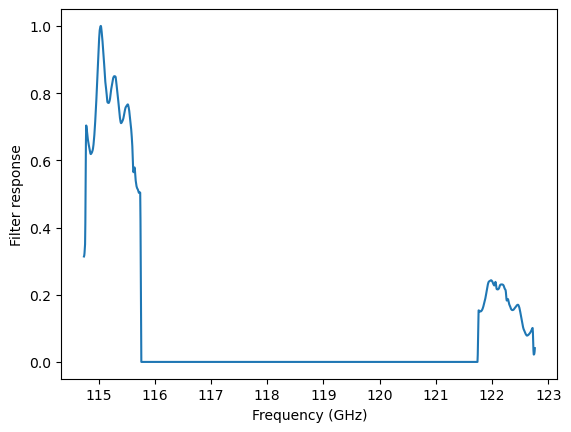

Channel 02 Central wavenumber/frequency: 3.887 cm-1 / 116.535 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.4 deg Comment: 2 , channel number SRF data: rtcoef_tms_7_tms_srf_ch02.txt SRF plot: rtcoef_tms_7_tms_srf_ch02.png

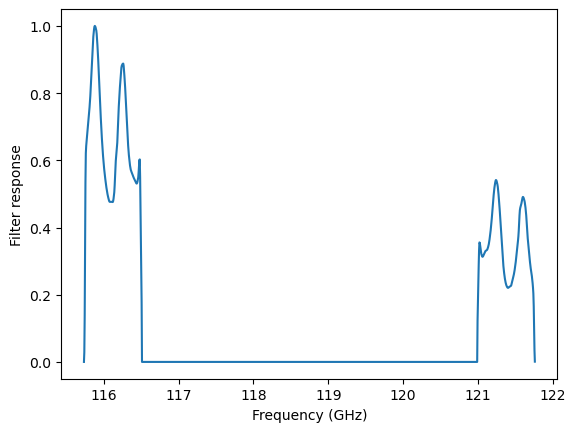

Channel 03 Central wavenumber/frequency: 3.933 cm-1 / 117.911 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.4 deg Comment: 3 , channel number SRF data: rtcoef_tms_7_tms_srf_ch03.txt SRF plot: rtcoef_tms_7_tms_srf_ch03.png

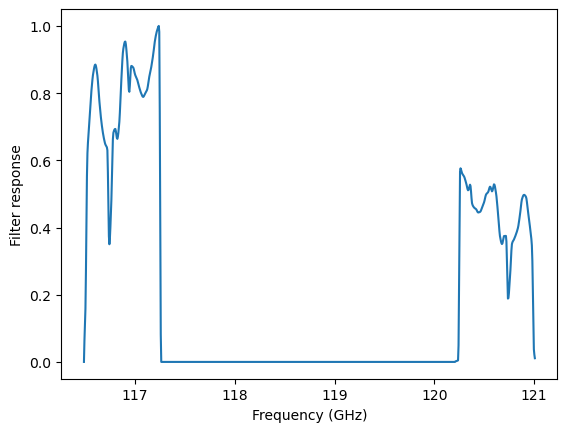

Channel 04 Central wavenumber/frequency: 3.944 cm-1 / 118.230 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.4 deg Comment: 4 , channel number SRF data: rtcoef_tms_7_tms_srf_ch04.txt SRF plot: rtcoef_tms_7_tms_srf_ch04.png

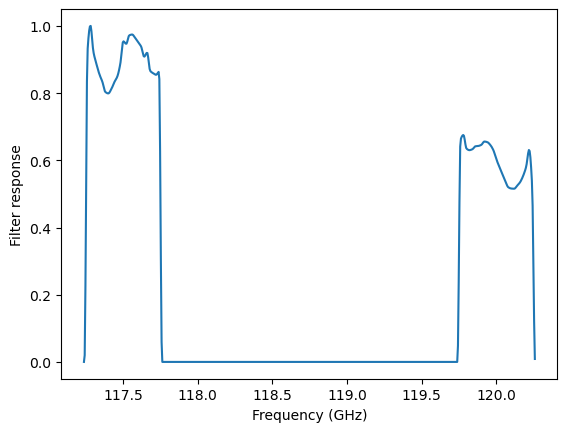

Channel 05 Central wavenumber/frequency: 3.953 cm-1 / 118.497 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.4 deg Comment: 5 , channel number SRF data: rtcoef_tms_7_tms_srf_ch05.txt SRF plot: rtcoef_tms_7_tms_srf_ch05.png

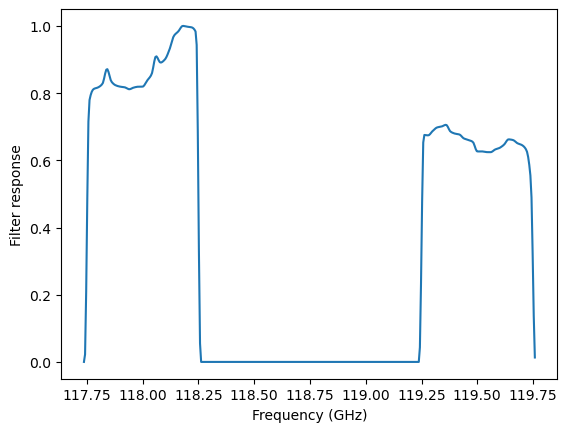

Channel 06 Central wavenumber/frequency: 3.958 cm-1 / 118.645 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.4 deg Comment: 6 , channel number SRF data: rtcoef_tms_7_tms_srf_ch06.txt SRF plot: rtcoef_tms_7_tms_srf_ch06.png

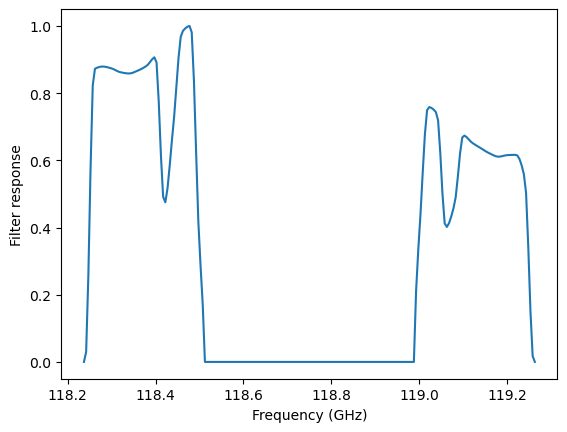

Channel 07 Central wavenumber/frequency: 3.959 cm-1 / 118.691 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.4 deg Comment: 7 , channel number SRF data: rtcoef_tms_7_tms_srf_ch07.txt SRF plot: rtcoef_tms_7_tms_srf_ch07.png

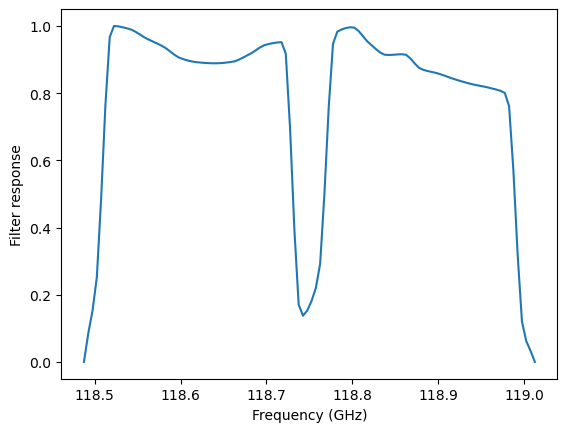

Channel 08 Central wavenumber/frequency: 3.961 cm-1 / 118.743 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.4 deg Comment: 8 , channel number SRF data: rtcoef_tms_7_tms_srf_ch08.txt SRF plot: rtcoef_tms_7_tms_srf_ch08.png

Channel 09 Central wavenumber/frequency: 6.109 cm-1 / 183.149 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.7 deg Comment: 9 , channel number SRF data: rtcoef_tms_7_tms_srf_ch09.txt SRF plot: rtcoef_tms_7_tms_srf_ch09.png

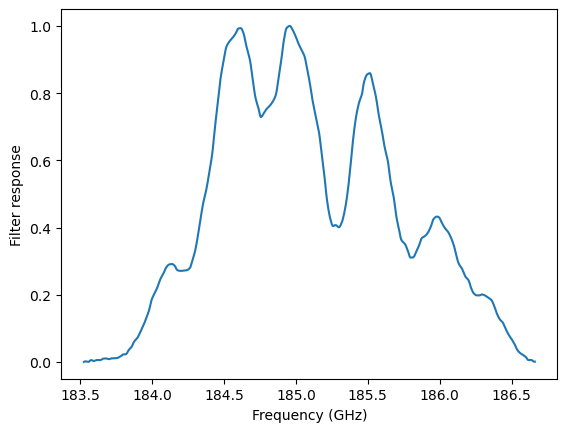

Channel 10 Central wavenumber/frequency: 6.174 cm-1 / 185.094 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.7 deg Comment: 10 , channel number SRF data: rtcoef_tms_7_tms_srf_ch10.txt SRF plot: rtcoef_tms_7_tms_srf_ch10.png

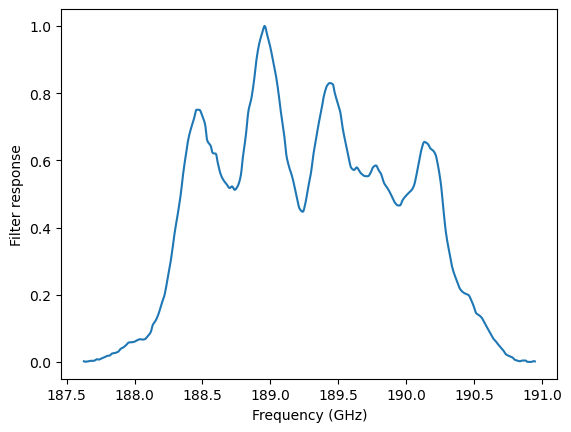

Channel 11 Central wavenumber/frequency: 6.314 cm-1 / 189.280 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.7 deg Comment: 11 , channel number SRF data: rtcoef_tms_7_tms_srf_ch11.txt SRF plot: rtcoef_tms_7_tms_srf_ch11.png

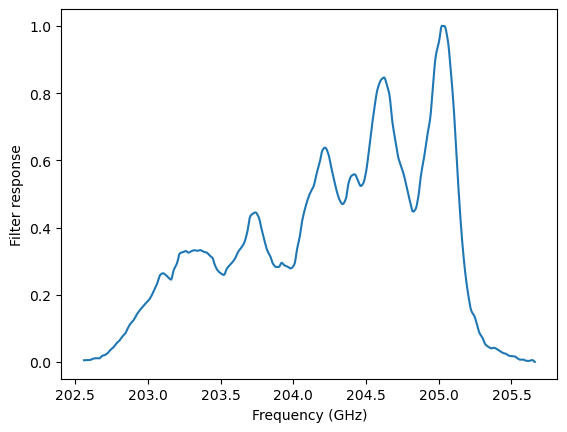

Channel 12 Central wavenumber/frequency: 6.814 cm-1 / 204.288 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.7 deg Comment: 12 , channel number SRF data: rtcoef_tms_7_tms_srf_ch12.txt SRF plot: rtcoef_tms_7_tms_srf_ch12.png
