This file generated: 29/07/2025
Data obtained from The Tomorrow Companies inc.
for the Tomorrow.io Microwave Sounder (TMS) Instrument onboard platform Tomorrow-S05
Date received: 14/03/2025
Download all SRFs: rtcoef_tms_5_tms_srf.tar.gz

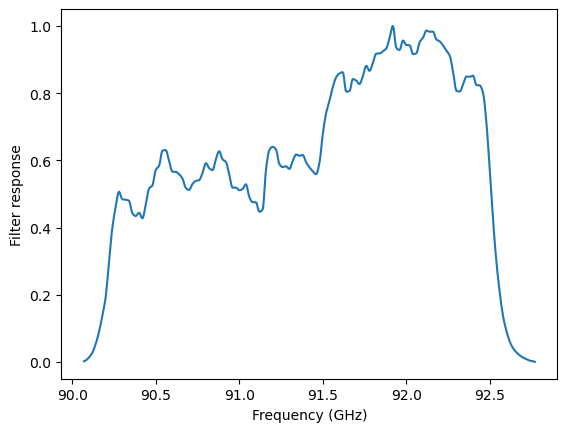

Channel 01 Central wavenumber/frequency: 3.053 cm-1 / 91.517 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.2 deg Comment: 1 , channel number SRF data: rtcoef_tms_5_tms_srf_ch01.txt SRF plot: rtcoef_tms_5_tms_srf_ch01.png |
![]() |

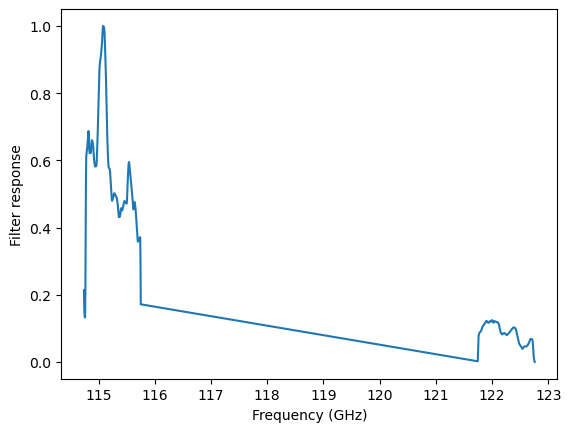

Channel 02 Central wavenumber/frequency: 3.869 cm-1 / 115.985 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.3 deg Comment: 2 , channel number SRF data: rtcoef_tms_5_tms_srf_ch02.txt SRF plot: rtcoef_tms_5_tms_srf_ch02.png |
![]() |

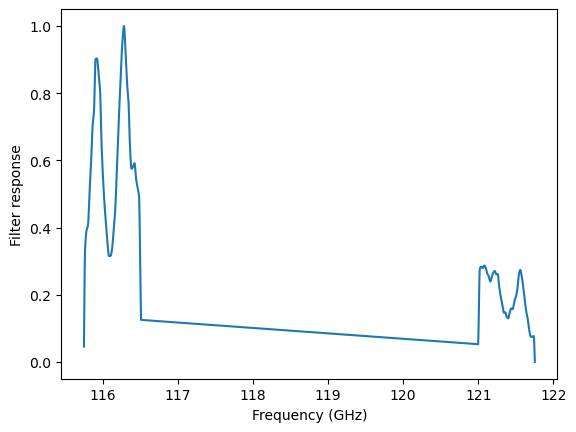

Channel 03 Central wavenumber/frequency: 3.922 cm-1 / 117.585 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.3 deg Comment: 3 , channel number SRF data: rtcoef_tms_5_tms_srf_ch03.txt SRF plot: rtcoef_tms_5_tms_srf_ch03.png |
![]() |

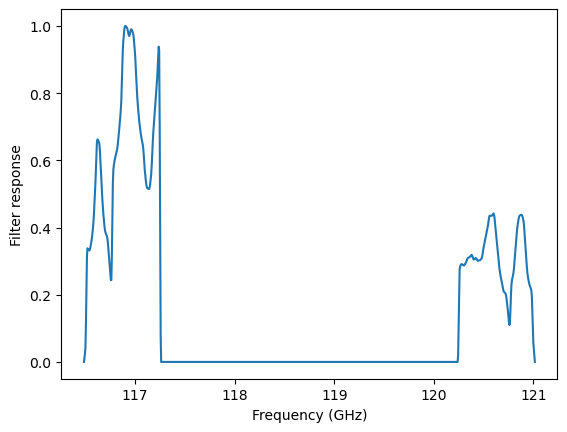

Channel 04 Central wavenumber/frequency: 3.940 cm-1 / 118.130 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.3 deg Comment: 4 , channel number SRF data: rtcoef_tms_5_tms_srf_ch04.txt SRF plot: rtcoef_tms_5_tms_srf_ch04.png |
![]() |

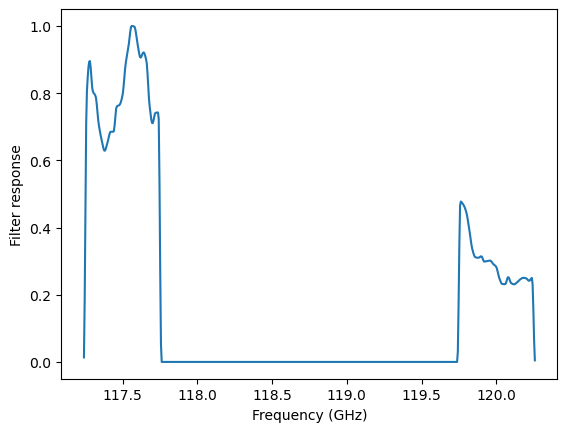

Channel 05 Central wavenumber/frequency: 3.942 cm-1 / 118.172 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.3 deg Comment: 5 , channel number SRF data: rtcoef_tms_5_tms_srf_ch05.txt SRF plot: rtcoef_tms_5_tms_srf_ch05.png |
![]() |

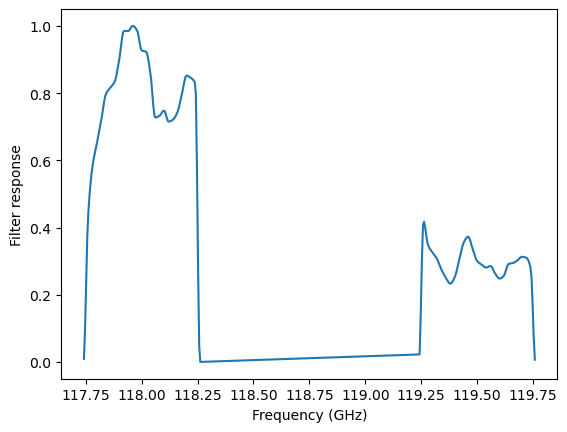

Channel 06 Central wavenumber/frequency: 3.950 cm-1 / 118.426 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.3 deg Comment: 6 , channel number SRF data: rtcoef_tms_5_tms_srf_ch06.txt SRF plot: rtcoef_tms_5_tms_srf_ch06.png |
![]() |

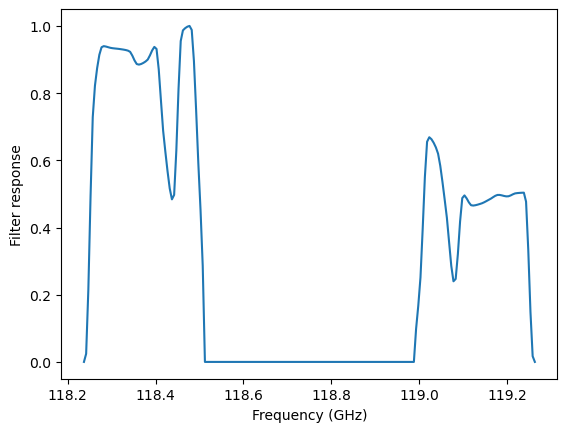

Channel 07 Central wavenumber/frequency: 3.958 cm-1 / 118.644 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.3 deg Comment: 7 , channel number SRF data: rtcoef_tms_5_tms_srf_ch07.txt SRF plot: rtcoef_tms_5_tms_srf_ch07.png |
![]() |

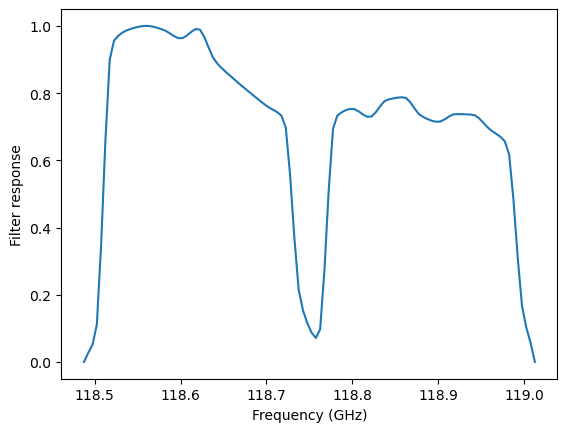

Channel 08 Central wavenumber/frequency: 3.961 cm-1 / 118.733 GHz Polarisation: Fixed V/H mix (ID=7), phi=14.3 deg Comment: 8 , channel number SRF data: rtcoef_tms_5_tms_srf_ch08.txt SRF plot: rtcoef_tms_5_tms_srf_ch08.png |
![]() |

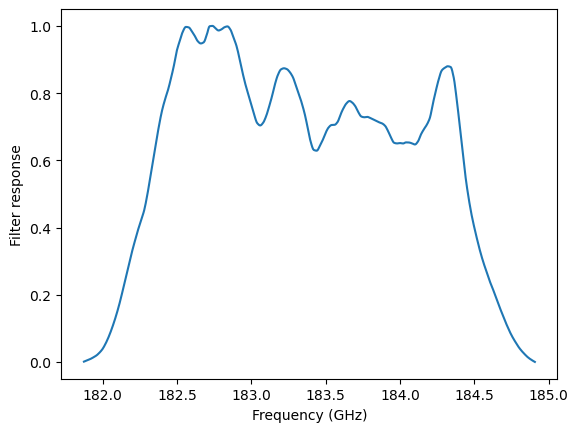

Channel 09 Central wavenumber/frequency: 6.116 cm-1 / 183.340 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.6 deg Comment: 9 , channel number SRF data: rtcoef_tms_5_tms_srf_ch09.txt SRF plot: rtcoef_tms_5_tms_srf_ch09.png |
![]() |

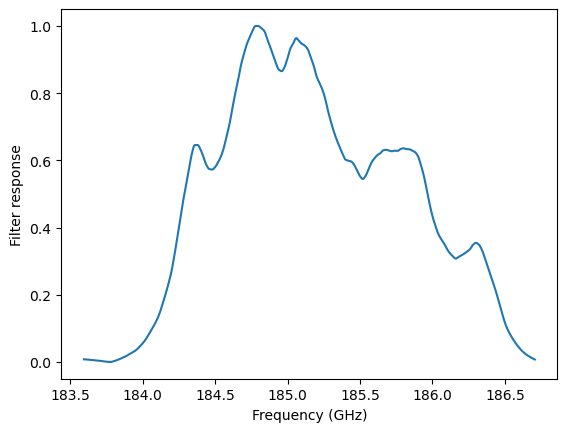

Channel 10 Central wavenumber/frequency: 6.177 cm-1 / 185.191 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.6 deg Comment: 10 , channel number SRF data: rtcoef_tms_5_tms_srf_ch10.txt SRF plot: rtcoef_tms_5_tms_srf_ch10.png |
![]() |

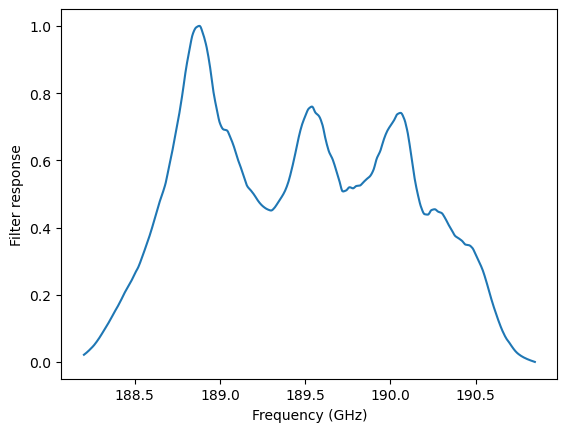

Channel 11 Central wavenumber/frequency: 6.320 cm-1 / 189.455 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.6 deg Comment: 11 , channel number SRF data: rtcoef_tms_5_tms_srf_ch11.txt SRF plot: rtcoef_tms_5_tms_srf_ch11.png |
![]() |
Channel 12 Central wavenumber/frequency: 6.816 cm-1 / 204.344 GHz Polarisation: Fixed V/H mix (ID=7), phi=-75.6 deg Comment: 12 , channel number SRF data: rtcoef_tms_5_tms_srf_ch12.txt SRF plot: rtcoef_tms_5_tms_srf_ch12.png |
![]() |
