This file generated: 05/02/2025
Data obtained from EUMETSAT for the ICI instrument.
This is the first flight model.
Date received: 23/03/2022
.mat files contains the Frequency [Hz], Gain with respect to peak [dB] and uncertainty [dB].
Cutoff applied for gains < -21. dB
Download all SRFs: rtcoef_metopsg_2_ici_srf.tar.gz
Channel 01 Central wavenumber/frequency: 6.111 cm-1 / 183.190 GHz Comment: 1 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch01.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch01.png |
![]() |

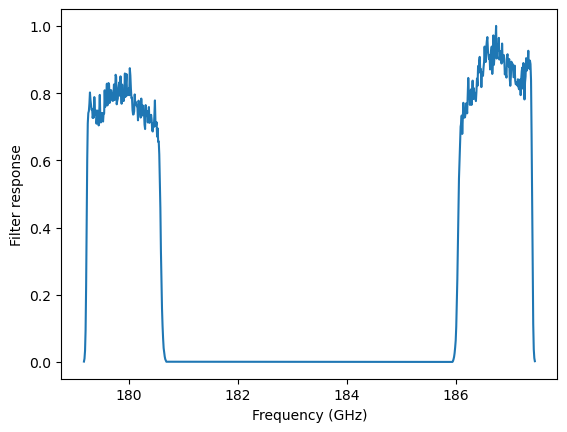

Channel 02 Central wavenumber/frequency: 6.121 cm-1 / 183.502 GHz Comment: 2 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch02.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch02.png |
![]() |

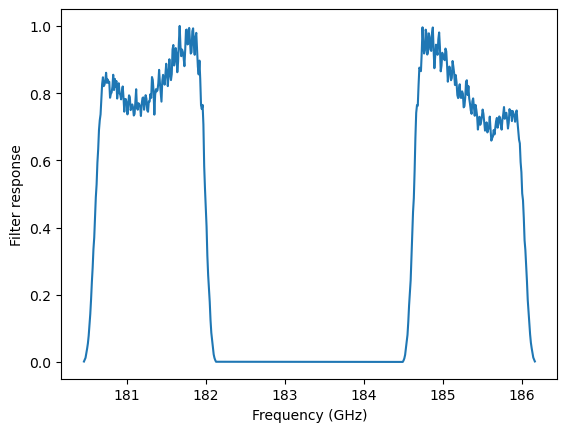

Channel 03 Central wavenumber/frequency: 6.113 cm-1 / 183.262 GHz Comment: 3 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch03.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch03.png |
![]() |

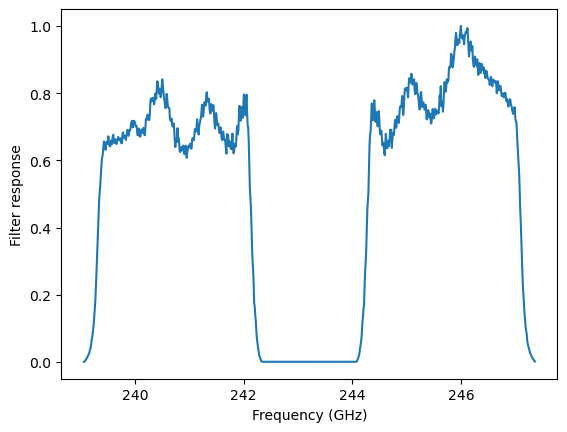

Channel 04 Central wavenumber/frequency: 8.119 cm-1 / 243.398 GHz Comment: 4 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch04.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch04.png |
![]() |

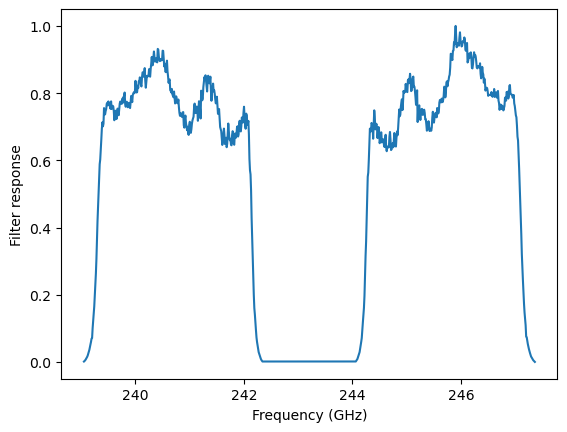

Channel 05 Central wavenumber/frequency: 8.114 cm-1 / 243.238 GHz Comment: 5 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch05.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch05.png |
![]() |

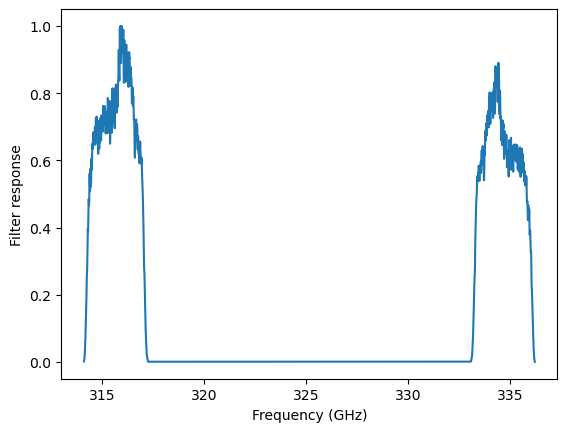

Channel 06 Central wavenumber/frequency: 10.824 cm-1 / 324.485 GHz Comment: 6 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch06.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch06.png |
![]() |

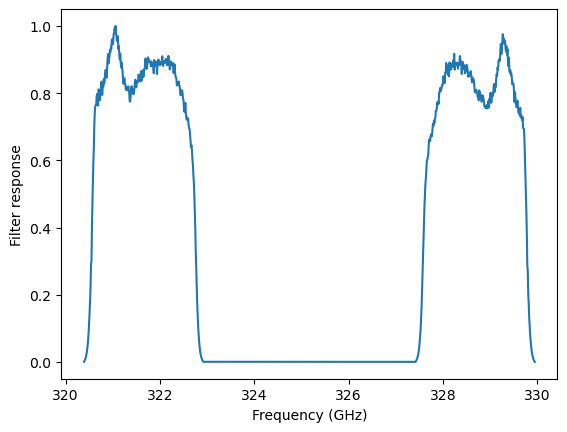

Channel 07 Central wavenumber/frequency: 10.844 cm-1 / 325.103 GHz Comment: 7 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch07.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch07.png |
![]() |

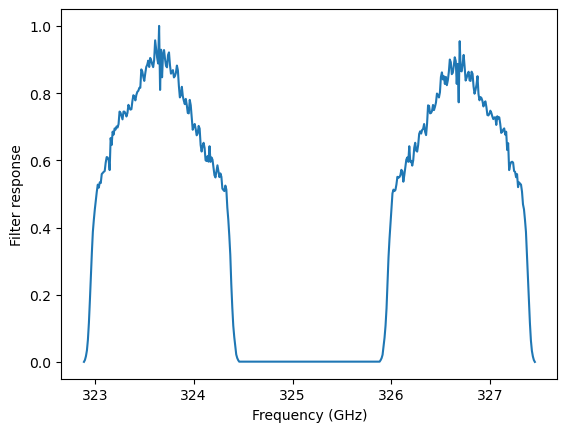

Channel 08 Central wavenumber/frequency: 10.846 cm-1 / 325.155 GHz Comment: 8 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch08.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch08.png |
![]() |

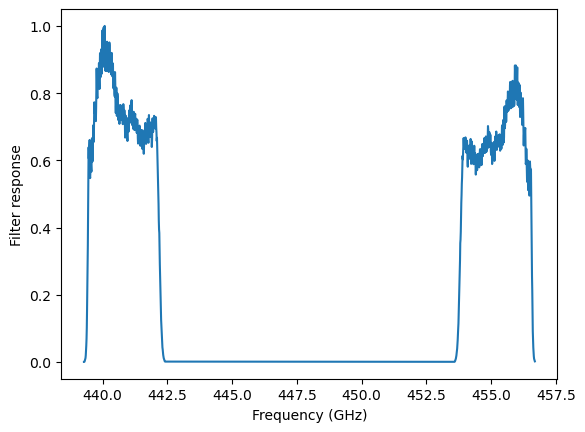

Channel 09 Central wavenumber/frequency: 14.930 cm-1 / 447.596 GHz Comment: 9 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch09.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch09.png |
![]() |

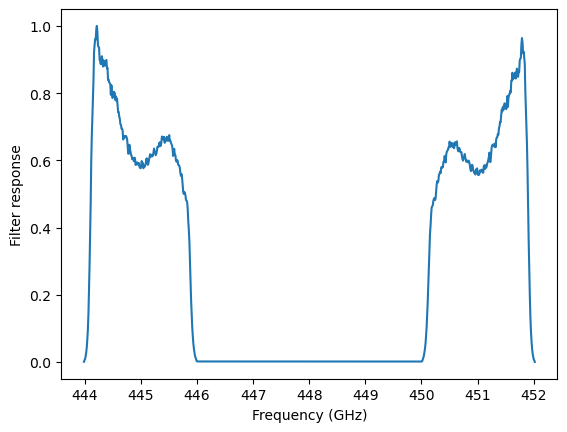

Channel 10 Central wavenumber/frequency: 14.942 cm-1 / 447.944 GHz Comment: 10 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch10.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch10.png |
![]() |

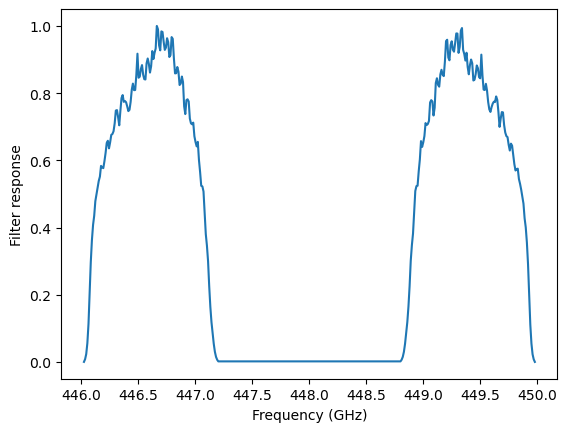

Channel 11 Central wavenumber/frequency: 14.944 cm-1 / 447.998 GHz Comment: 11 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch11.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch11.png |
![]() |
Channel 12 Central wavenumber/frequency: 22.148 cm-1 / 663.985 GHz Comment: 12 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch12.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch12.png |
![]() |
Channel 13 Central wavenumber/frequency: 22.143 cm-1 / 663.840 GHz Comment: 13 , channel number SRF data: rtcoef_metopsg_2_ici_srf_ch13.txt SRF plot: rtcoef_metopsg_2_ici_srf_ch13.png |
![]() |
