Central wavenumber/frequency: 0.794 cm-1 / 23.801 GHz
Comment: 1 , channel number
SRF data: rtcoef_metopsg_1_mws_srf_ch01.txt
SRF plot: rtcoef_metopsg_1_mws_srf_ch01.png
This file generated: 05/02/2025
Data obtained from EUMETSAT for all channels the MWS PFM instrument.
This is the first flight model.
Date received: 31/01/2023
Three excel spreadsheets entitled 'MWS_RF-ch1-2_ch17-24', 'MWS_RF-A_03-16-PFM',
and 'MWS_RF-B_03-16-PFM' were provided. The 'A' file was used for channels 3 to 16.
SRF's given in frequency (GHz) and passband weights in dB.
Weights used were labelled 'FFT-NOM (dB)-normalised' or
'FFT-NOM (dB)-normalised-balanced' for the upper side band in 'MWS_RF-ch1-2_ch17-24'.
Weights used were labelled 'MWS-{channel number}-FE+BE' in 'MWS_RF-A_03-16-PFM'.
Download all SRFs: rtcoef_metopsg_1_mws_srf.tar.gz
|

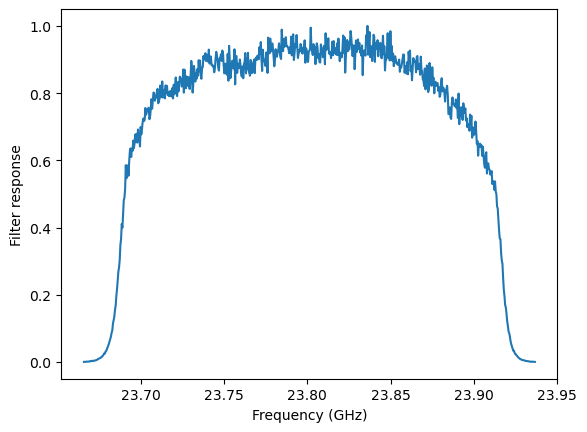

Channel 01 Central wavenumber/frequency: 0.794 cm-1 / 23.801 GHz Comment: 1 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch01.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch01.png |
|
|

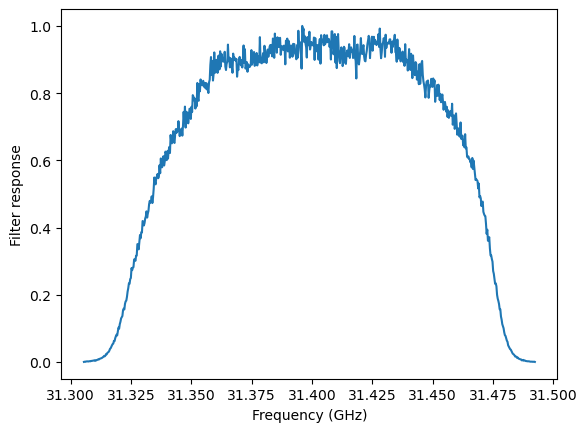

Channel 02 Central wavenumber/frequency: 1.047 cm-1 / 31.401 GHz Comment: 2 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch02.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch02.png |
|
|
Channel 03 Central wavenumber/frequency: 1.678 cm-1 / 50.301 GHz Comment: 3 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch03.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch03.png |
|
|
Channel 04 Central wavenumber/frequency: 1.761 cm-1 / 52.801 GHz Comment: 4 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch04.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch04.png |
|
|

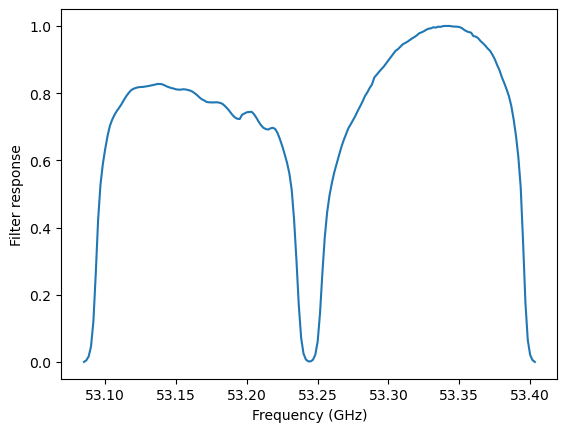

Channel 05 Central wavenumber/frequency: 1.776 cm-1 / 53.251 GHz Comment: 5 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch05.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch05.png |
|
|
Channel 06 Central wavenumber/frequency: 1.787 cm-1 / 53.583 GHz Comment: 6 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch06.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch06.png |
|
|
Channel 07 Central wavenumber/frequency: 1.799 cm-1 / 53.937 GHz Comment: 7 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch07.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch07.png |
|
|
Channel 08 Central wavenumber/frequency: 1.814 cm-1 / 54.393 GHz Comment: 8 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch08.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch08.png |
|
|
Channel 09 Central wavenumber/frequency: 1.833 cm-1 / 54.939 GHz Comment: 9 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch09.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch09.png |
|
|

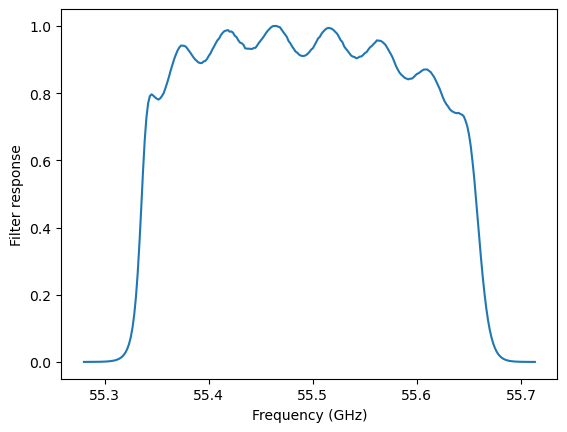

Channel 10 Central wavenumber/frequency: 1.851 cm-1 / 55.494 GHz Comment: 10 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch10.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch10.png |
|
|

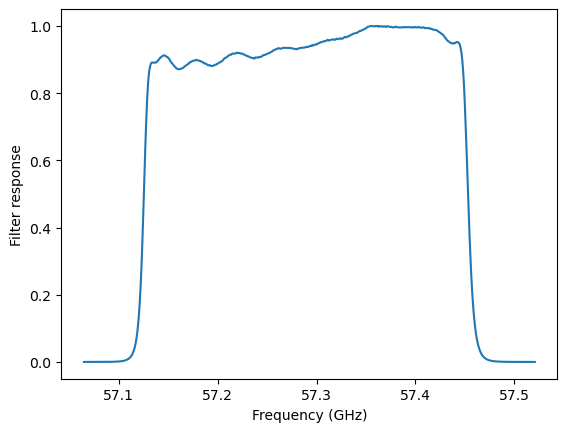

Channel 11 Central wavenumber/frequency: 1.911 cm-1 / 57.293 GHz Comment: 11 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch11.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch11.png |
|
|

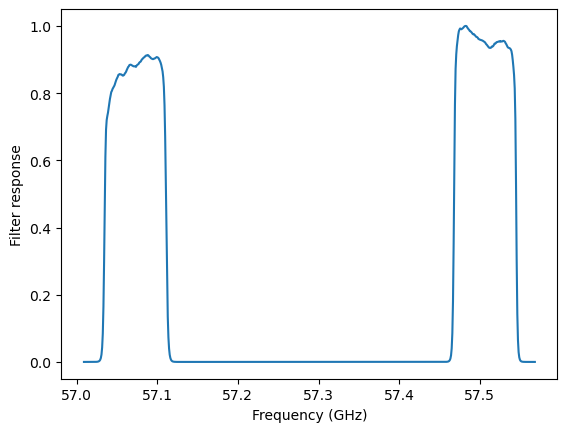

Channel 12 Central wavenumber/frequency: 1.911 cm-1 / 57.301 GHz Comment: 12 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch12.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch12.png |
|
|
Channel 13 Central wavenumber/frequency: 1.911 cm-1 / 57.302 GHz Comment: 13 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch13.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch13.png |
|
|

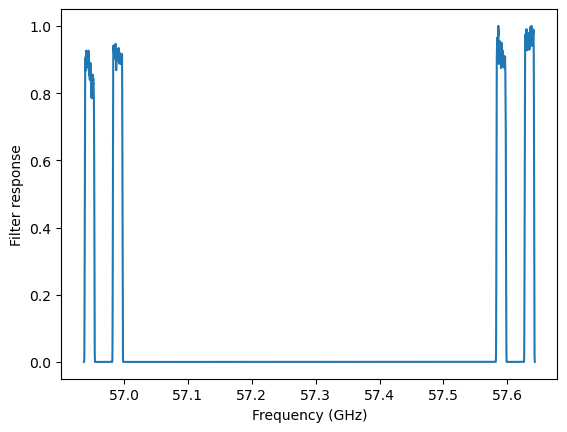

Channel 14 Central wavenumber/frequency: 1.911 cm-1 / 57.298 GHz Comment: 14 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch14.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch14.png |
|
|
Channel 15 Central wavenumber/frequency: 1.911 cm-1 / 57.301 GHz Comment: 15 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch15.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch15.png |
|
|
Channel 16 Central wavenumber/frequency: 1.911 cm-1 / 57.302 GHz Comment: 16 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch16.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch16.png |
|
|

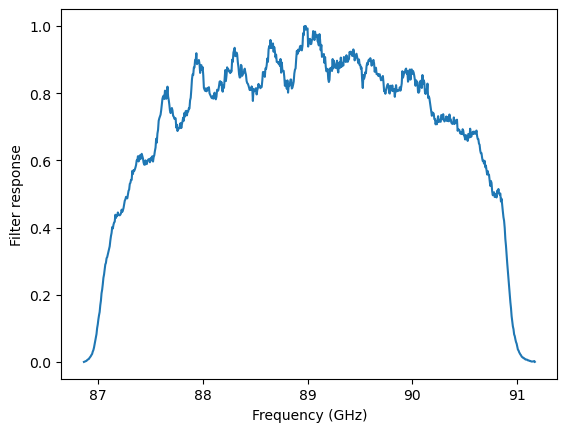

Channel 17 Central wavenumber/frequency: 2.969 cm-1 / 89.009 GHz Comment: 17 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch17.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch17.png |
|
|
Channel 18 Central wavenumber/frequency: 5.522 cm-1 / 165.547 GHz Comment: 18 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch18.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch18.png |
|
|
Channel 19 Central wavenumber/frequency: 6.127 cm-1 / 183.668 GHz Comment: 19 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch19.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch19.png |
|
|
Channel 20 Central wavenumber/frequency: 6.122 cm-1 / 183.536 GHz Comment: 20 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch20.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch20.png |
|
|
Channel 21 Central wavenumber/frequency: 6.120 cm-1 / 183.464 GHz Comment: 21 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch21.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch21.png |
|
|

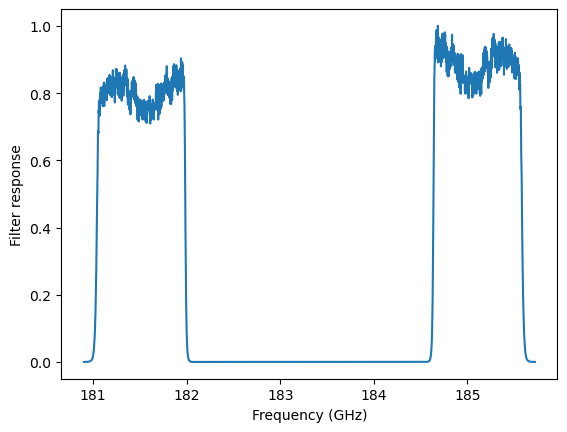

Channel 22 Central wavenumber/frequency: 6.118 cm-1 / 183.402 GHz Comment: 22 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch22.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch22.png |
|
|

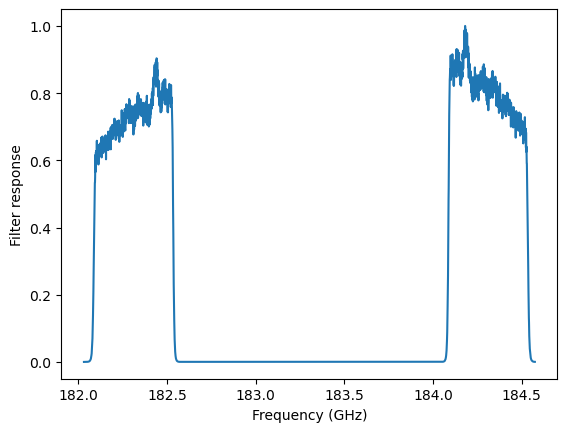

Channel 23 Central wavenumber/frequency: 6.116 cm-1 / 183.361 GHz Comment: 23 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch23.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch23.png |
|
|
Channel 24 Central wavenumber/frequency: 7.639 cm-1 / 229.005 GHz Comment: 24 , channel number SRF data: rtcoef_metopsg_1_mws_srf_ch24.txt SRF plot: rtcoef_metopsg_1_mws_srf_ch24.png |
|
